HASL and ENIG: A Comparison of PCB Surface Finishing Processes
In PCB (Printed Circuit Board) manufacturing, surface finishing processes are critical. They not only protect the pads from oxidation and corrosion but also directly impact soldering performance and the overall reliability of the PCB. Different surface finishing methods have varied effects on production costs, process complexity, and product performance. This article provides an in-depth explanation of the two most common surface finishing methods: Hot Air Solder Leveling (HASL) and Electroless Nickel Immersion Gold (ENIG). It aims to help you select the most suitable process based on your specific needs.
The Importance of Surface Finishing in PCB
In modern electronics, PCB surface finishing is not only a key step in production but also directly affects the product’s market competitiveness. The primary purpose of surface finishing is to apply a protective coating that prevents copper pads from oxidizing in the air, ensuring excellent solderability during the assembly process. High-quality surface finishing also extends PCB shelf life and improves durability in harsh environments.
As PCB designs become increasingly complex, the requirements for surface finishing have risen significantly. From traditional wide-pitch soldering to today’s high-density interconnects (HDI) and fine-pitch soldering, choosing the right surface finishing method has become crucial. HASL and ENIG are two of the most representative processes in the market, each with unique applications.

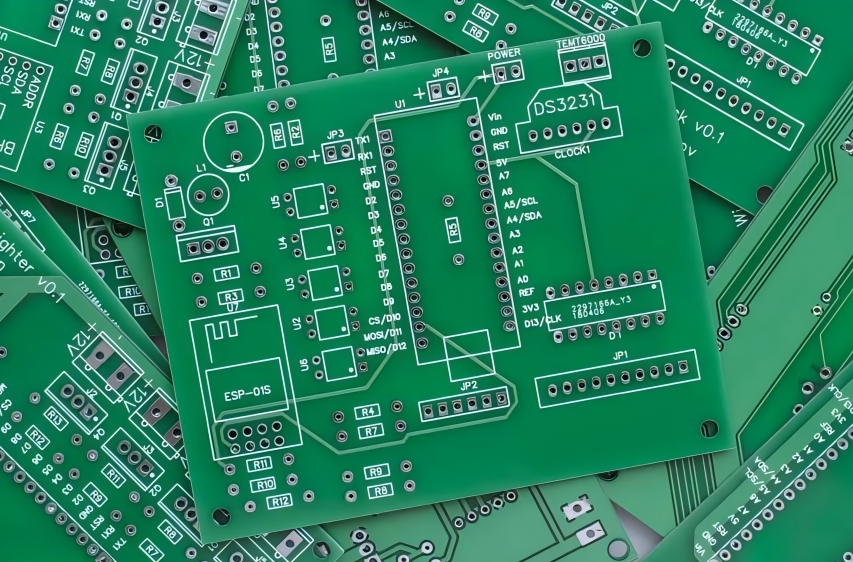

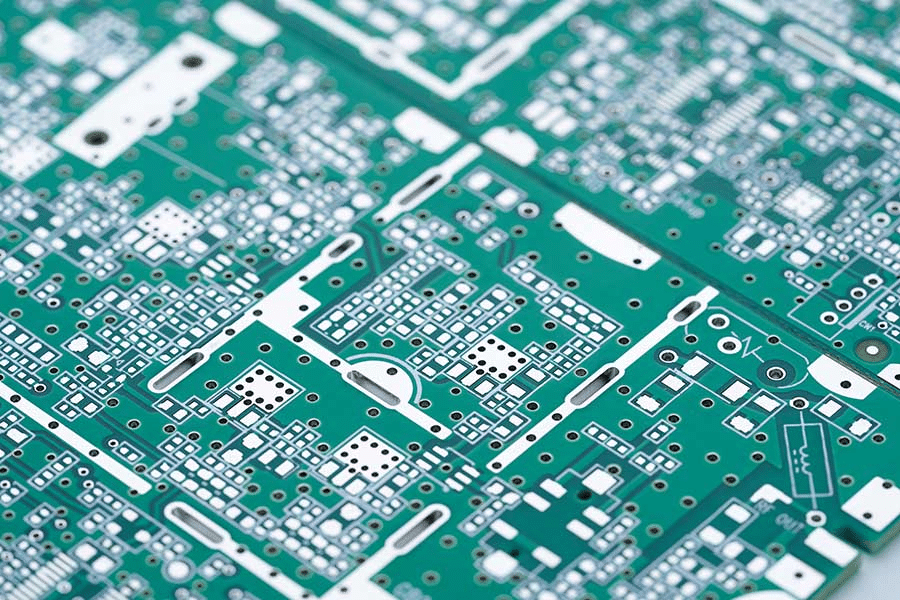

What is HASL?
Definition
Hot Air Solder Leveling (HASL) is a process in which the PCB is dipped into molten solder, covering the entire copper surface. Excess solder is then removed and leveled using hot air to create a uniform protective coating. Since its introduction, HASL has been widely adopted due to its cost-effectiveness and process maturity.
Process Flow
- Surface Cleaning and Flux Application: Remove oxidation and contaminants from the PCB surface and apply flux to enhance solder adhesion.
- Dipping in Molten Solder: Immerse the PCB vertically into molten solder or apply it via horizontal spraying.
- Hot Air Leveling: Use high-temperature air to remove excess solder, ensuring a flat surface and preventing solder buildup.
Advantages
Cost-Effective: With mature technology and lower equipment costs, HASL is particularly suitable for high-volume production.
Excellent Solderability: The solder coating protects copper pads and provides good soldering performance for various assembly processes.
Long Shelf Life: Under proper storage conditions, HASL-treated PCBs can maintain their solderability for months.
Easy Rework: The solder coating is relatively simple to repair, making HASL a low-cost option for products requiring multiple tests and adjustments.
Limitations
Poor Surface Flatness: The coating is often uneven, making it unsuitable for fine-pitch designs (<0.5mm).
Environmental Concerns: Traditional lead-based HASL poses environmental risks, although lead-free options are now widely available.
Thermal Stress: The high-temperature immersion process may introduce thermal stress, potentially deforming or damaging certain materials.
What is ENIG?
Definition
Electroless Nickel Immersion Gold (ENIG) is a process that forms a nickel layer and covers it with a thin gold layer on the PCB surface. ENIG provides excellent flatness, significantly enhances corrosion resistance, and improves solderability, making it ideal for high-density and high-reliability applications.
Process Flow
- Surface Cleaning and Activation: Use micro-etching solutions to clean the PCB surface and remove oxides, then activate the copper pads for nickel deposition.
- Nickel Deposition: A chemical reaction deposits a nickel layer on the copper surface, preventing copper diffusion and improving soldering performance.
- Gold Deposition: A thin gold layer is applied to the nickel surface to enhance corrosion resistance and solderability.
- Cleaning and Drying: Finally, the PCB is cleaned and dried to ensure surface quality and process stability.
-

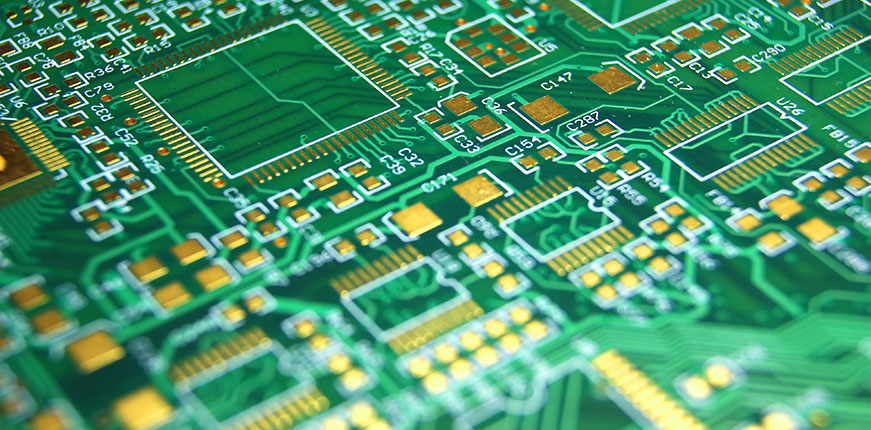

ENIG
Advantages
Excellent Flatness: ENIG provides an exceptionally uniform coating, supporting fine-pitch (<0.5mm) designs, such as BGA (Ball Grid Array) and high-density packaging.
Long Shelf Life: The combination of nickel and gold layers ensures the pads maintain excellent performance during long-term storage, often exceeding 12 months.
Environmentally Friendly: ENIG complies with RoHS standards, making it a lead-free, eco-friendly option for global markets.
Outstanding Corrosion Resistance: The gold layer offers superior oxidation protection, performing well in humid and corrosive environments.
Limitations
Higher Cost: ENIG involves higher equipment and material costs, making it suitable for high-quality, high-performance products.
Black Pad Risk: Improper process control or nickel oxidation can lead to black pad defects, reducing solderability and requiring precise process management.
Complex Rework: Due to the properties of the gold and nickel layers, rework is more complicated and requires specialized equipment and expertise.
HASL vs. ENIG: A Detailed Comparison
| Feature | HASL | ENIG |
| Cost | Low | High |
| Surface Flatness | Poor | Excellent |
| Fine-Pitch Compatibility | Poor | Excellent |
| Shelf Life | Short (~6 months) | Long (12+ months) |
| Environmental Compliance | Lead versions non-compliant | RoHS-compliant |
| Solderability | Excellent | Excellent |
| Rework Complexity | Easy | Complex |
| Application Scope | Large pad spacing, low-cost designs | High-precision, harsh environments |
How to Choose Between HASL and ENIG
Suitable Scenarios for HASL
High-volume production projects with budget constraints, such as consumer electronics or general-purpose PCBs.
Designs with large pad spacing (>0.5mm) that do not require extreme precision.
For applications where quick turnaround or low flatness requirements are acceptable, such as initial prototype boards,
Suitable Scenarios for ENIG
Fine-pitch designs (<0.5mm), such as HDI and BGA packaging applications.
Long-term storage requirements (over 12 months) or products used in humid and corrosive environments.
Projects requiring lead-free processes or compliance with RoHS standards, such as medical devices and high-end communication equipment.
Conclusion
HASL and ENIG are two classic processes in PCB surface finishing, each with unique strengths and suitable applications. HASL’s low cost and high solderability make it competitive for large-scale production, while ENIG’s superior flatness and reliability make it the first choice for high-precision, high-demand applications.
